Description

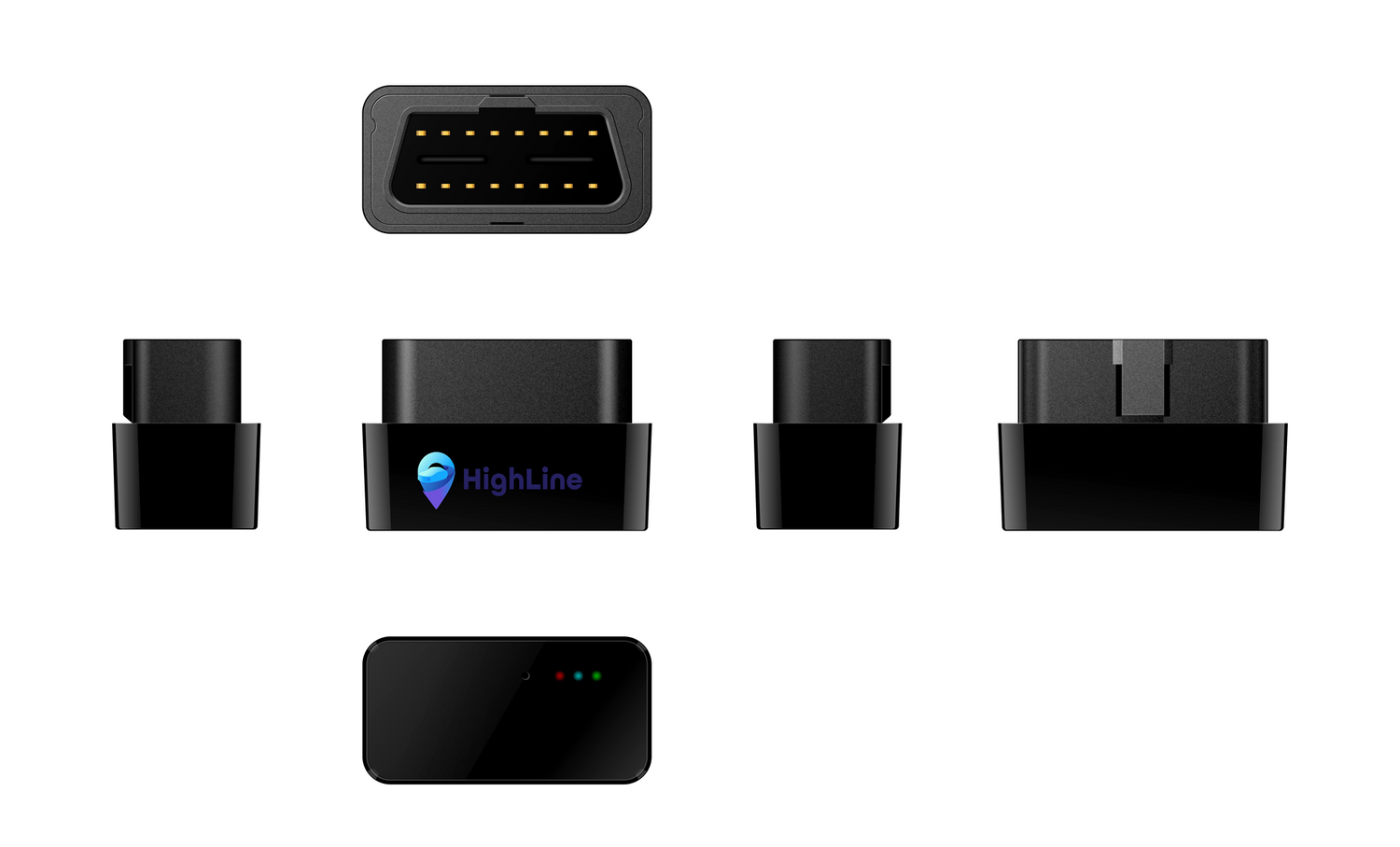

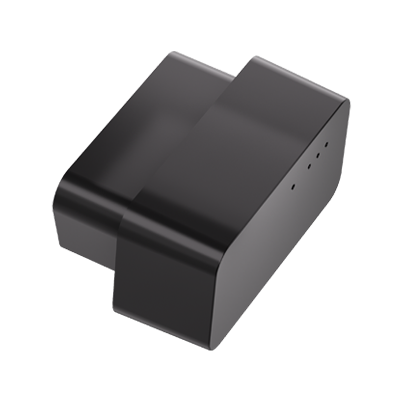

The HL505 is an ultra-compact plug-and-play 4G OBD tracking unit designed for use in both private cars and commercial fleets. Its 4G connectivity ensures real-time data transmission; while the multi-source positioning (GPS, BDS, and LBS) provides accurate location tracking. In addition, the VL505 offers an array of valuable alerts, including geofencing, unexpected vibration, speeding, and power failure, ensuring 24/7 protection for your fleet vehicles and cargo as long as it remains connected. It is a proper choice if you want to increase efficiency, reduce costs, and enhance security.
500 mb SIM Data Included. You can recharge as required from this site
Features
Plug and Play
Effortless installation through the vehicle's OBD II port, ensuring reliable power supply and operation.
4G LTE Connectivity
Enable real-time monitoring of the vehicle being tracked.
Driving Behavior Analysis (Basic)
Receive alerts when any of 4 kinds of dangerous driving behavior (harsh acceleration, harsh braking, harsh cornering, collision) is detected.
9-36V Operating Voltage
Compatible with a wide range of input voltage, able to work on diverse vehicles.
Ultra-Compact Design
The unit is only 1.7cm in height when being inserted into the OBD port, making it hard to notice.
Multi-source Positioning
A synergy of multiple positioning systems (GPS, BDS, AGPS, and LBS) ensures that locations are accurately displayed on the cloud platform.
Remote Recording
Inconspicuous mic allows for remote recording of ambient sounds around the device.
Multiple Alerts
Instant alerts for atypical events such as speeding, unexpected vibration, power supply disconnection, geo-fence entry/exit, etc.
Specifications
Positioning & Location
Technology |
GPS, BDS, AGPS, LBS |
Accuracy |
<2.5m CEP
|
Tracking sensitivity |
–163dBm
|
Acquisition sensitivity |
–158dBm
|
TTFF (open sky) |
Avg. hot start ≤1sec Avg. cold start ≤28sec
|
Cellular
Technology |
LTE Cat 1
|
Frequency |
HL505-NA LTE-FDD: B2/B4/B5/B7/B12/B14/B17/B25/B26/B66 LTE-TDD: B41VL505-EU LTE-FDD: B1/B3/B7/B8/B20/B28 LTE-TDD: B34/B38/B39/B40/B41
|
Power
Battery |
50mAh/3.7V
|
Input voltage |
9–36VDC
|
Power consumption |
Standby: 2mA Working: 35mA (one update per 10s)
|
Operating environment
Operating temperature |
–20°C to 70°C |
Operating humidity |
5% to 95%, non-condensing |
IP rating |
N/A |
Physical specification
Dimensions |
45.0 x 30.0 x 22.5mm |
Weight |
26g |
Interface
LED indication |
Power (Red), GNSS (Blue), Cellular (Green) |
SIM |
eSIM |
Digital I/Os |
N/A
|
Analog I/Os |
N/A
|
Voltage detection |
N/A
|
Memory capacity |
400 GPS data entries |
USB |
N/A |
Microphone |
Onboard |
No. of relays |
N/A
|
GNSS antenna |
Internal |
Bluetooth antenna |
N/A
|
Serial ports |
N/A
|
Feature
Voice monitoring range |
≤5 meters |
Sensors |
Accelerometer |
Scenarios |
Vibrating alert, Over-Speed, Collision, Geo-fence entry & exit alert, Power-on, Device pull-out, GPS blind spot alert |
Driving behavior analysis (DBA) |
Harsh acceleration, Harsh braking, Harsh cornering, Collision |
Bluetooth |
N/A |
Configuration support |
SMS, Tracksolid Pro |
Certification |
FCC, CE
|
*Optional Configuration required to be customized or purchased separately.
