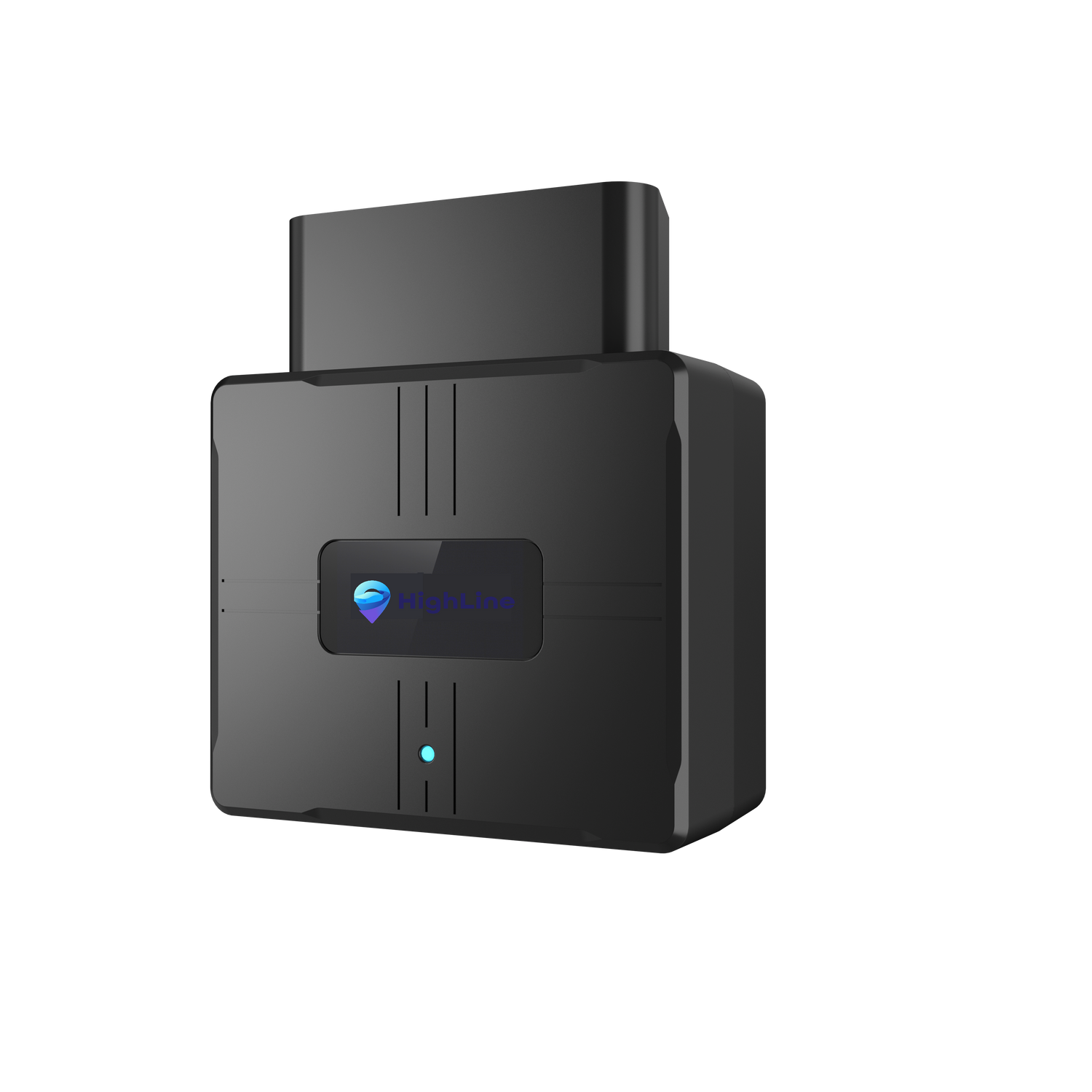

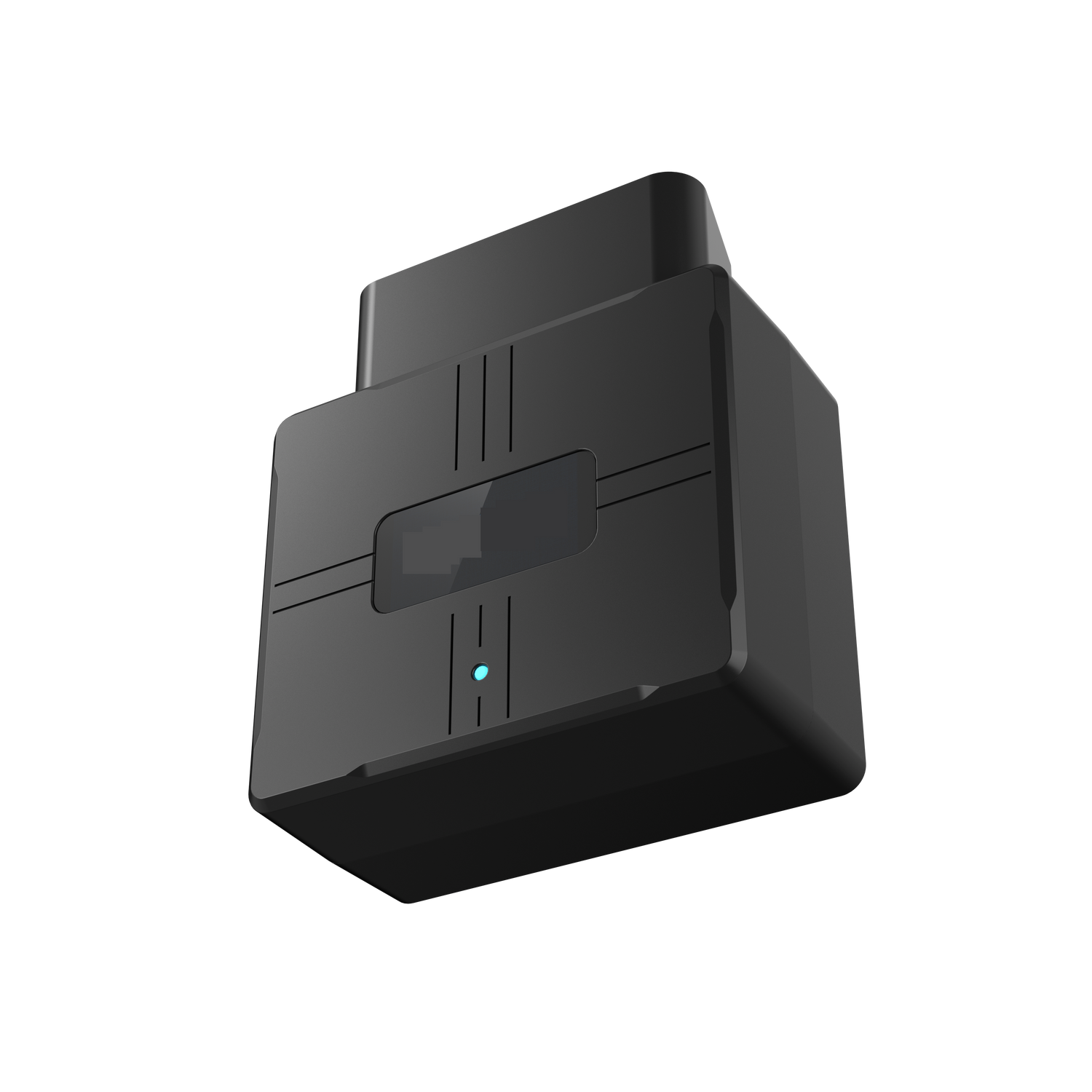

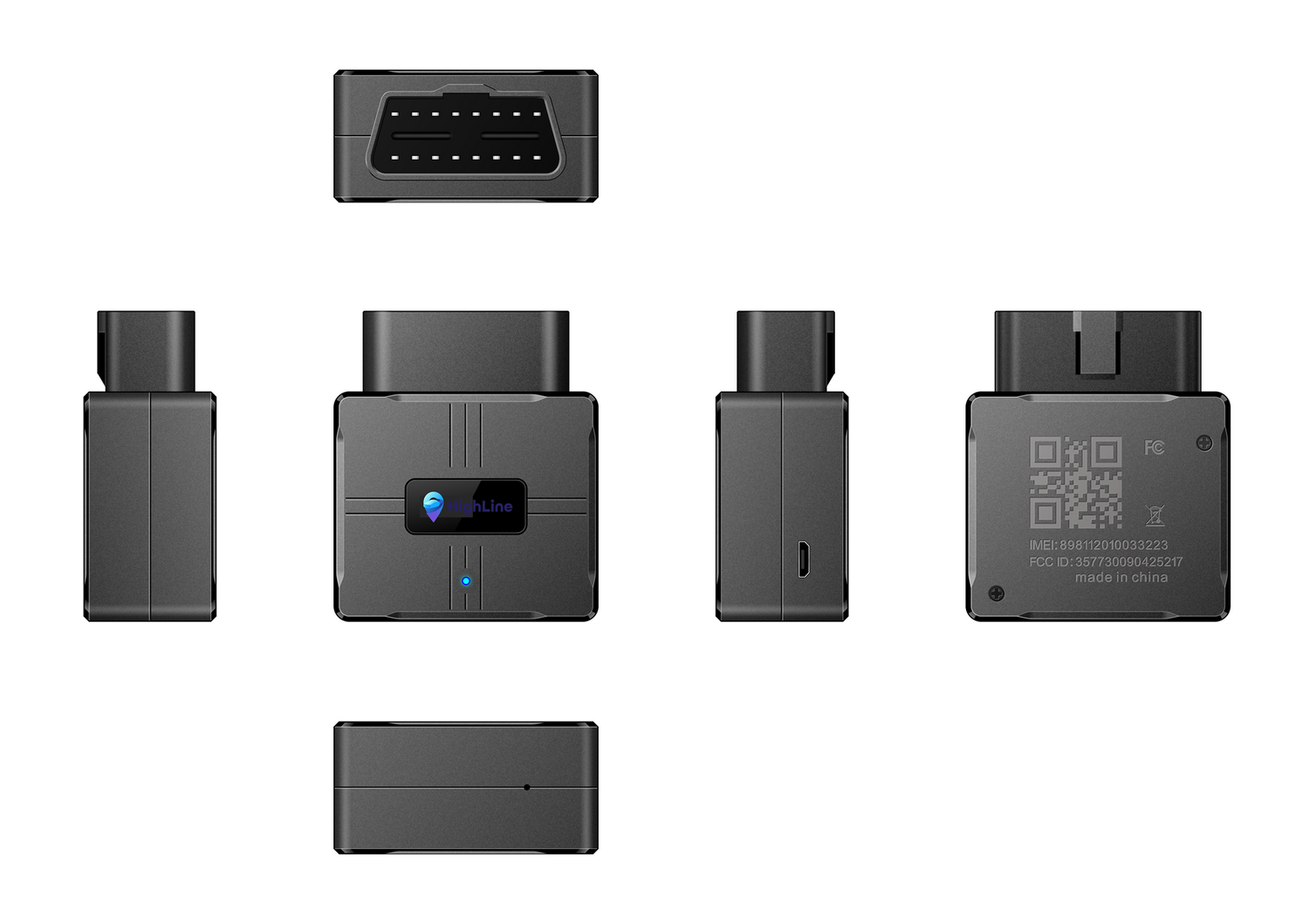

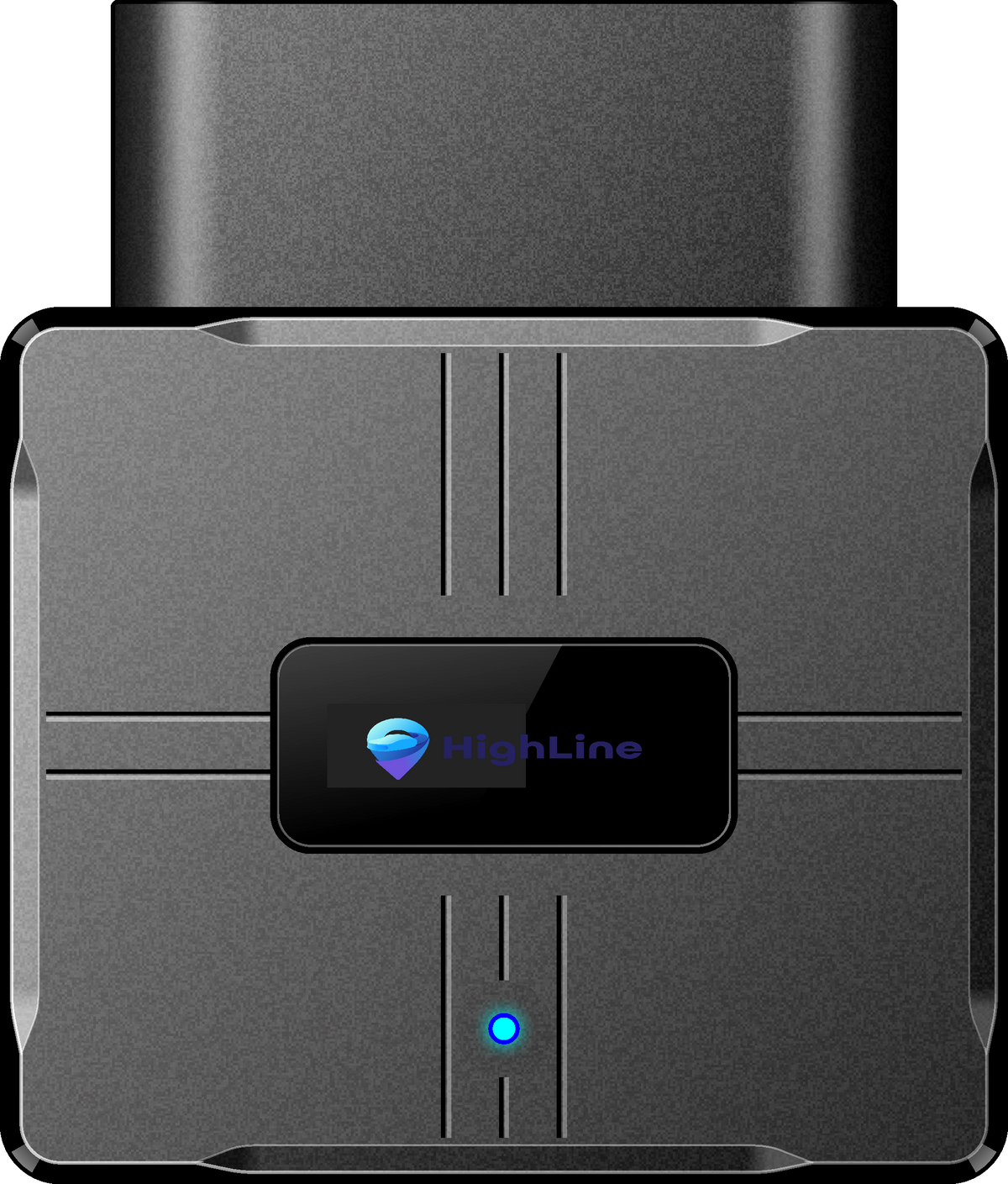

The HL502 is a new generation of 4G Cat 1 OBDII vehicle tracker for corporate cars, usage-based insurance, fleet management, and individual cars, which can obtain vehicle data such as VIN code, engine speed, water temperature, accumulated mileage, etc. With the UBI-based algorithm for driving behavior analysis, the VL502 can accurately analyze any of 4 kinds of dangerous driving behavior and support the all-round monitoring of vehicles’ real-time status.
500 mb SIM Data Included. You can recharge as required from this site
Features
LTE & GSM Network
Communication via 4G LTE networks with 2G GSM fallback.
GPS & BDS Positioning
Two complementary positioning systems ensure the locations to be accurately displayed on cloud platform.
Multiple Alerts
Instant alerts for atypical events such as car fault, overspeed, ignition detection, collision, geo-fence entry/exit, etc.
On-Board Diagnostics
Obtain real data of vehicle (accurate mileage, fault code, ACC status, fuel consumption statistics, battery voltage, engine speed, etc.)
Driving Behavior Analysis
Get instant alerts for 4 or 8 kinds of dangerous driving behavior, depending on your needs.
Effortless Installation
Simply plug this device into the OBDII socket, you don't have to turn to professionals.
ISO 9141-2 (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (fast init, 10.4 kbaud) ISO 15765-4 CAN (11 bit ID, 250 kbaud) ISO 15765-4 CAN (11 bit ID, 500 kbaud) ISO 15765-4 CAN (29 bit ID, 250 kbaud) ISO 15765-4 CAN (29 bit ID, 500 kbaud) SAE J1939 CAN(29 bit ID, 250 kbaud) SAE J1939 CAN(29 bit ID, 500 kbaud)
Feature
Voice monitoring range
N/A
Sensors
Accelerometer
Scenarios
Car Fault, Over-Speed, Ignition detection, Collision, Geo-fence entry/exit, Power on, Device pull-out, Engine idling
We reserve the right to the final interpretation of this page. All information is for reference only and is subject to change without further notice.
Downloads
Leaflet
Future-proof GPS asset
tracking
Deliver efficiency and uncompromised security of assets even if takento most remote locations. Streamline manual operations. Makedata-driven decisions.
Forward to the past
Track and manage multiple objects
Accurate real-time positioning
360° street view and traffic
See vehicle and driver location on a live map
Help reduce fuel and labour costs
Track driver idling, excessive speeding and harsh driving
Improve dispatch, routing and visibility
Stay Connected On the Go
Download our mobile app for iOS and Android.
HighLine Track
The Fleet Management Software for GPS Tracking and Video Monitoring
