Description

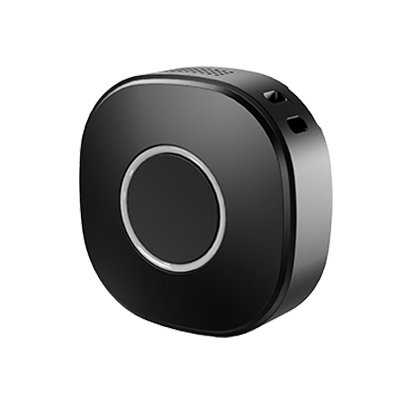

The PL601 is a compact, portable personal tracker designed to safeguard children and the elderly. It supports GNSS, Wi-Fi, and LBS positioning, and features 4G Cat 1 connectivity, two-way communication, panic button, geo-fence and route playback, providing comprehensive real-time protection. Additionally, the device is ideal for item and pet tracking, making it a versatile solution for a wide range of needs.
Features
4G Communication
The 4G Cat 1 network offers broad coverage and real-time connectivity, allowing remote monitoring of device status and setting adjustments via the app.
Multiple Working Modes
Supports timing and intelligent modes, allowing for customizable settings based on specific needs.
Panic Button
Press the panic button to send an immediate alert and real-time location for emergency assistance.
Compact and Portable Design
The device is lightweight and compact, with a lanyard accessory for easy carrying.
Accurate and Intelligent Positioning
Supports GNSS, Wi-Fi, and LBS positioning with AGPS assistance, enabling smart switching of methods based on movement and environment for fast and accurate positioning both indoors and outdoors. Movement history can be saved and reviewed anytime via the app.
Two-Way HD Audio Communication
The device features a high-sensitivity microphone and loudspeaker for clear two-way HD audio communication, enabling easy contact with family anytime, anywhere.
Multiple Alerts
Instant alerts for SOS, geo-fence entry/exit, low battery, power on/off and abnormal noise.
Specifications
| Technology |
GPS, BDS
|
| Accuracy |
＜2m CEP50 |
| Tracking sensitivity |
–165dBm
|
| Acquisition sensitivity |
–159dBm
|
| TTFF (open sky) |
Avg. hot start ≤1sec
Avg. cold start ≤26sec
|
Cellular
| Technology |
LTE Cat 1
|
| Frequency |
PL601_LA:
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66
GSM: 850/900/1800/1900
PL601_NA:
LTE-FDD: B2/B4/B5/B7/B12/B14/B17/B25/B26/B66
LTE-TDD: B41
PL601_EA:
LTE-FDD: B1/B3/B7/B8/B20/B28
LTE-TDD: B34/B38/B39/B40/B41
GSM: 900/1800 |
Power
| Battery |
650mAh/3.8V industrial-grade Li-Polymer battery (disposable) |
| Working modes |
Intelligent mode
Timing mode
|
| Battery life |
Up to 4 days in intelligent mode, 2 hours moving per day (update every 60s)
|
Operating environment
| Operating temperature |
–20℃ to +70℃
|
| Operating humidity |
5% to 95%, non-condensing
|
| IP rating |
IP65
|
Physical specification
| Dimensions |
45.0 x 45.0 x 17.0mm |
| Weight |
33g |
Interface
| LED indication |
Tri-color LED for power, cellular, and GNSS
|
| SIM |
Nano-SIM
|
| Memory capacity |
1000 GPS data entries
|
| Button |
1 button for SOS, power on/off, and more
|
| USB |
Type-C (for charging)
|
| GNSS antenna |
Internal |
| Bluetooth antenna |
Internal |
Feature
| Voice monitoring range |
3m |
| Sensors |
Accelerometer, Barometer (optional)
|
| Scenarios |
SOS alert, Geo-fence entry/exit alert, Abnormal noise alert, Low battery alert, Power on/off alert
|
| Mount method |
Lanyard, back clip
|
| Bluetooth |
BLE 5.0
|
| Configuration support |
Bluetooth
|
| Certification |
CE, FCC
|
*Optional Configuration required to be customized or purchased separately.
