Description

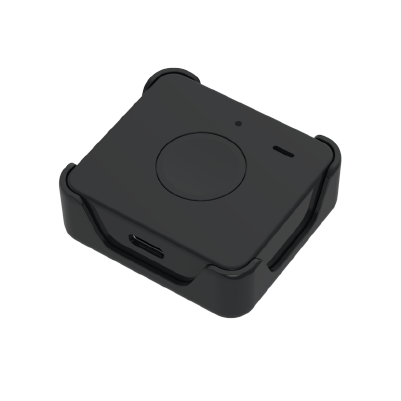

Small volume, compact structure, the Qbit M is an advanced portable tracker designed to handle the personal security of the elderly, children and vulnerable people. With LTE-M communication and GNSS positioning technology, the device ensures a solid connection and accurate positioning in almost all cases. Furthermore, various accessories, a safety fence and a sound alarm will add to the security and peace-of-mind provided by the Qbit M.
Features
Intelligent Positioning
With GNSS and nRF cellular positioning (optional) for indoor & outdoor signal coverage, the device can send notifications and upload locations based on moving states.
Compact Size
Small and light, yet with a long standby time, the device is easy to carry.
Sound Alarm
Make the device sound an alarm through the APP command to find the specific vehicle or person.
Time-Phased Working
Support setting the device's working hours and sleeping hours on demand.
Panic Button
Press the device's panic button to send an immediate alert and real-time location for emergency help or rescue.
Safety Fence
Geofencing (connected to WiFi hotspots), used with real-time location services, can notify users via the APP if a device leaves a designated area.
Specifications
GNSS
Positioning system |
GPS+QZSS (nRF*)
|
Positioning accuracy |
<2.5m CEP
|
Tracking sensitivity |
-155dBm
|
Acquisition sensitivity |
-147dBm
|
TTFF (open sky) |
Avg. hot start ≤1sec Avg. cold start ≤36sec
|
Cellular
Communication network |
LTE-M Cat M1 & Cat NB |
Frequency |
Cat-M1: B1, B2, B3, B4, B5, B8, B12, B13, B14, B18, B19, B20, B25, B26, B28, B66 Cat-NB1/NB2: B1, B2, B3, B4, B5, B8, B12, B13, B17, B19, B20, B25, B26, B28, B66 |
Power
Battery |
650mAh/3.8V industrial-grade Li-Polymer battery |
Working modes |
Intelligent mode; Regular GPS mode
|
Standby time |
Up to 7 days in Intelligent mode, 2 hours moving per day (180s locate interval in movement)
|
Interface
SIM |
Nano-SIM (or soft SIM) |
Button |
1 functional button, 1 panic button
|
Physical specification
Dimensions |
40.0 x 45.0 x 15.0mm
|
Weight |
30.5g |
Operating environment
Operating temperature |
–20℃ to +75℃
|
Operating humidity |
5%~95%, non-condensing
|
IP rating |
IP65 |
Feature
Sensors |
Accelerometer |
Scenarios |
Safety fence exit alert, Buzzer alert, Low battery alert
|
