Description

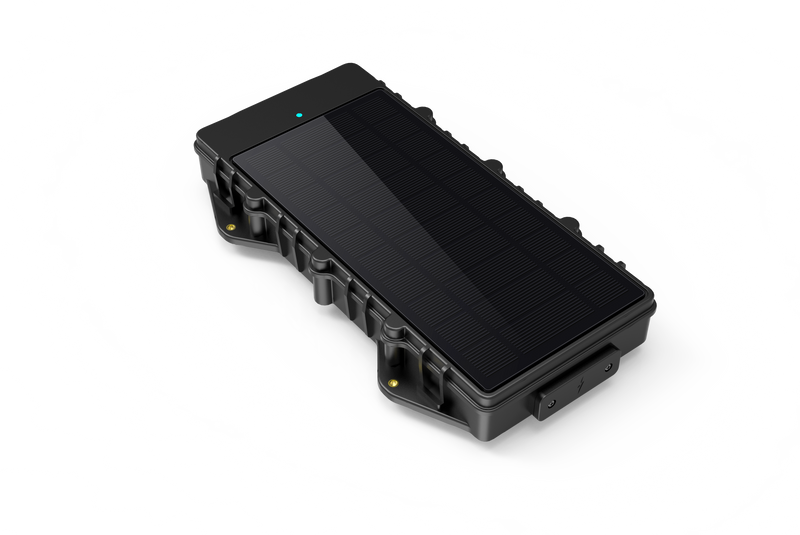

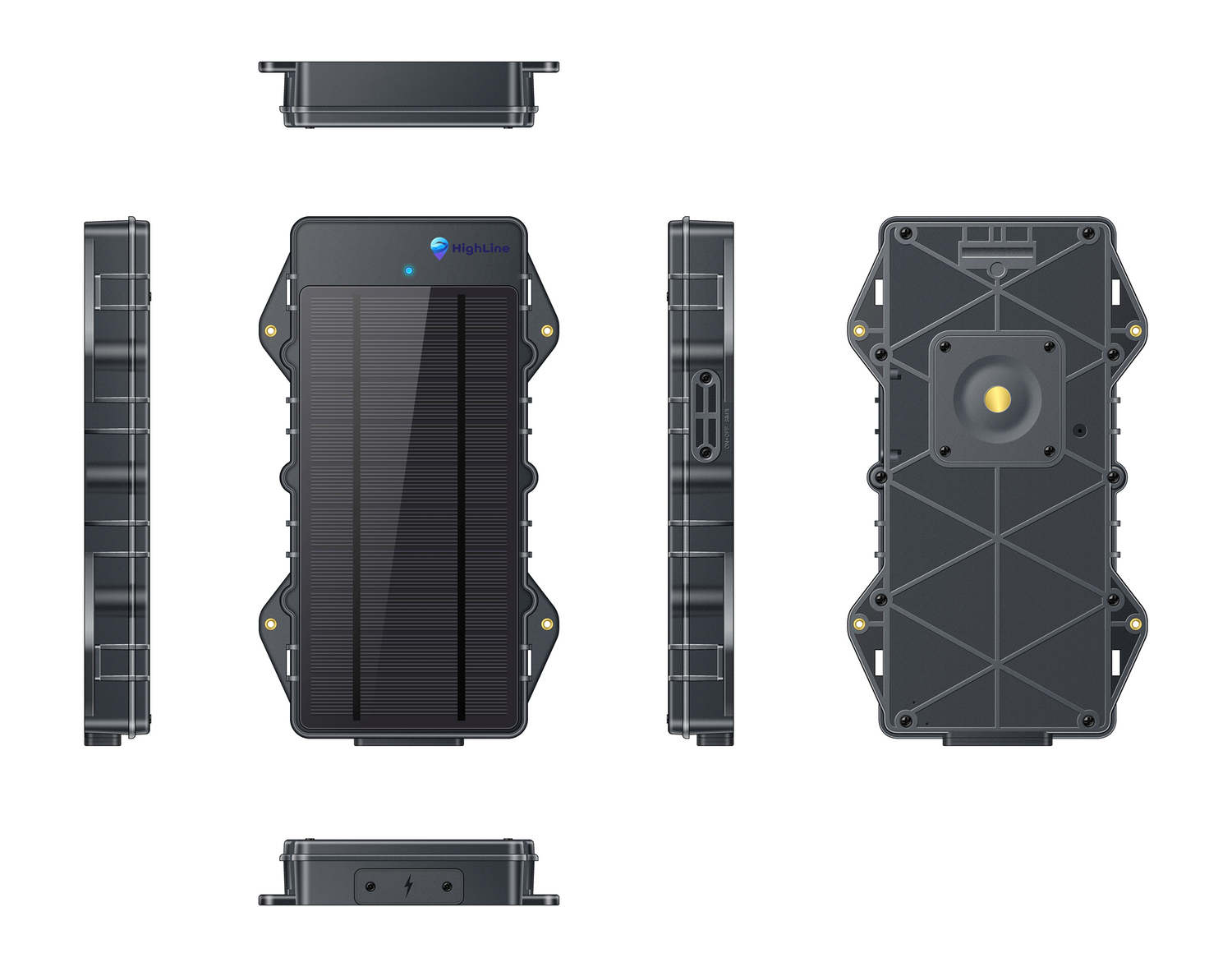

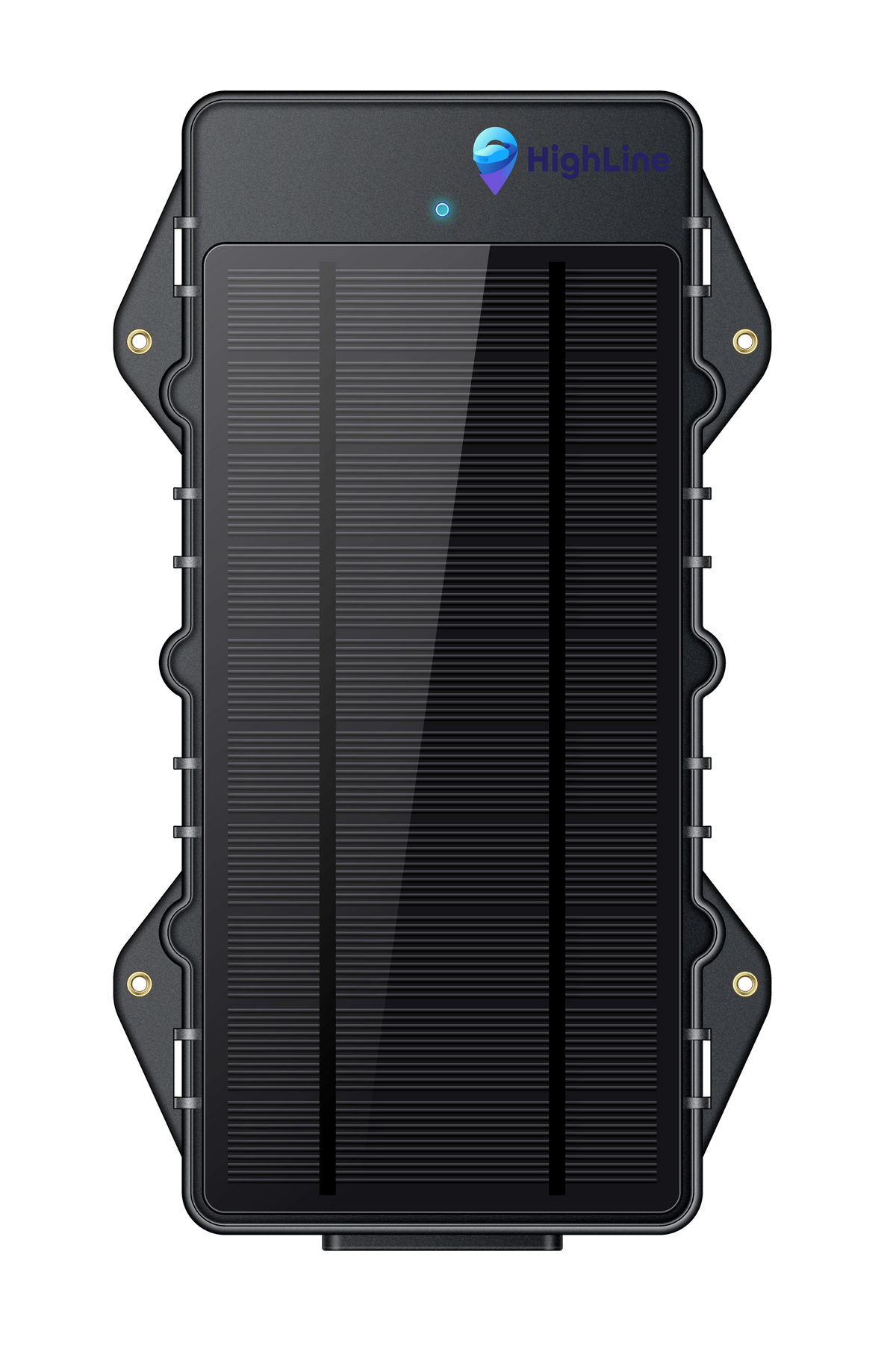

The HL303 PRO is a 4G solar-powered GPS tracker designed for the management of construction vehicles and vessels. Featuring the solar panel, magnetic charger, and IP67 waterproof rating, this device is ideal for a variety of deployments that require long standby time and continued optimal performance. LTE communication with GSM (2G) fallback ensures a solid connection in almost all cases. In addition to these features, multiple working modes, various peripheral accessories and the suite of event-triggered alerts will make the LL303 PRO a valuable part of your fleet management strategy.
500 mb SIM Data Included. You can recharge as required from this site
Features
LTE & GSM Network
Communication via 4G LTE networks with 2G GSM fallback.
Solar & Magnetic Charging
Easy charging via the solar panel and magnetic charger.
Multiple Alerts
Instant alerts for atypical events such as device removal, abnormal vibration, abnormal temperature & humidity, etc.
Bluetooth Accessory Compatibility (Optional)
Various bluetooth peripheral accessories allow for monitoring of fuel consumption, door status, etc.
GPS & BDS & LBS Positioning
A synergy of multiple positioning systems ensures that locations are accurately displayed on the cloud platform.
IP67 Dust & Water Resistance
Rugged design ensures continued optimal performance, even in the toughest conditions.
Multiple Working Modes
Configurable working modes according to your actual demands.
RFID Reader (Optional)
Access the information of devices via the active RFID.
Specifications
GNSS
Positioning system |
GPS+BDS+LBS
|
Positioning accuracy |
<2.5m CEP
|
Tracking sensitivity |
-165dBm
|
Acquisition sensitivity |
-148dBm
|
TTFF (open sky) |
Avg. hot start ≤1sec Avg. cold start ≤32sec
|
Cellular
Communication network |
LTE Cat 1/GSM; LTE Cat M1/Cat NB2
|
Frequency |
LL303PRO-L LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE-TDD: B40 GSM: B2/B3/B5/B8LL303PRO-E LTE-FDD: B1/B3/B5//B7/B8/B20/B28 LTE-TDD: B38/B40/B41 GSM: B2/B3/B5/B8LL303PRO-A Cat M1: B2/B4/B5/B12/B13/B25/B26/B66 Cat NB2: B2/B4/B5/B12/B13/B25/B66 GSM: B2/B3/B5/B8LL303PRO-GB: Cat M1: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66 Cat NB2: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85 GSM: B2/B3/B5/B8
|
Power
Battery |
10,000mAh/3.7V industrial-grade Li-Polymer battery
|
Solar power |
5V/400mA (Standard Operating Voltage/Current @STC) STC: Direct illumination with 38,000lux halogen lamp on the test bench.
|
Magnetic charger |
5V/2A
|
Working modes |
Mode 1: Timing mode Mode 2: Intelligent mode Mode 3: Power-saving mode
|
Standby time |
Up to 1 year in power-saving mode
|
Interface
LED indication |
Cellular (Green), Power (Red)
|
SIM |
Nano-SIM
|
Tamper proof |
Hall effect sensor
|
Physical specification
Dimensions |
200x115x25mm
|
Weight |
423g |
Operating environment
Operating temperature |
–20℃ to +70℃
|
Operating humidity |
5%~95%, non-condensing
|
IP rating |
IP67
|
Feature
Sensors |
Accelerometer, Hall effect sensor |
Scenarios |
Low battery alert, Tamper alert, Vibrating Alert
|
Bluetooth |
BLE 5.0
|
RFID |
2.4GHz
|
We reserve the right to the final interpretation of this page. All information is for reference only and is subject to change without further notice.
