Description
The HL802 is an advanced 4G GPS tracker designed to manage industrial and commercial fleets ranging from passenger cars and trucks to buses. This device’s two-way communication can help fleet managers improve driver management strategies. LTE communication with GSM (2G) fallback ensures a solid connection in almost all cases, and the suite of event-triggered alerts helps fleet managers monitor the status of their fleet in real time. With RS485 interface and various other I/Os for peripherals, this powerful device can be customized to streamline your operations and boost efficiency.
500 mb SIM Data Included. You can recharge as required from this site
Features
LTE & GSM Network
Communication via 4G LTE networks with 2G GSM fallback.
Remote Listen-in
Inconspicuous mic allows for remote audio monitoring of the environment around the device.
Ignition Detection
Constantly detect the ACC/ignition status of the vehicle.
Bluetooth Configuration
Fast and simple device configuration via app for iOS and Android.
Two-way Communication
Hands-free communication with your employee instead of using the phone!
Panic Button
Contact dispatch or emergency support with a discreet, in-cabin SOS button.
Remote Cut-Off (Fuel/Power)
Immobilize a vehicle by cutting off its power source/fuel supply via an installed relay.
Multiple Alerts
Instant alerts for atypical events such as impounding, geo-fence entry/exit, abnormal vibration, speeding, etc.
Specifications
GNSS
Positioning system |
GPS+BDS+LBS |
Positioning accuracy |
<2.5m CEP
|
Tracking sensitivity |
-162dBm
|
Acquisition sensitivity |
-160dBm
|
TTFF (open sky) |
Avg. hot start ≤1sec Avg. cold start ≤32sec
|
Cellular
Communication network |
LTE Cat 1/GSM
|
Frequency |
HL802-E: LTE-FDD: B1/B3/B7/B8/B20/B28 LTE-TDD: B34/B38/B39/B40/B41 GSM: 850/900/1800/1900MHzVL802-L: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28 GSM: 850/900/1800/1900MHz
|
Power
Battery |
1,000mAh/3.7V industrial-grade Li-Polymer battery
|
Input voltage |
9-36VDC
|
Interface
LED indication |
GNSS (Green), Cellular (Blue), Power (Red)
|
SIM |
Micro-SIM
|
Data storage |
16+16MB
|
Digital inputs |
ACC, SOS
|
Digital outputs |
Relay |
Configurable I/O |
2 special I/Os can be configured as extra digital inputs or outputs
|
Analog detect |
Support 0-5V
|
Physical specification

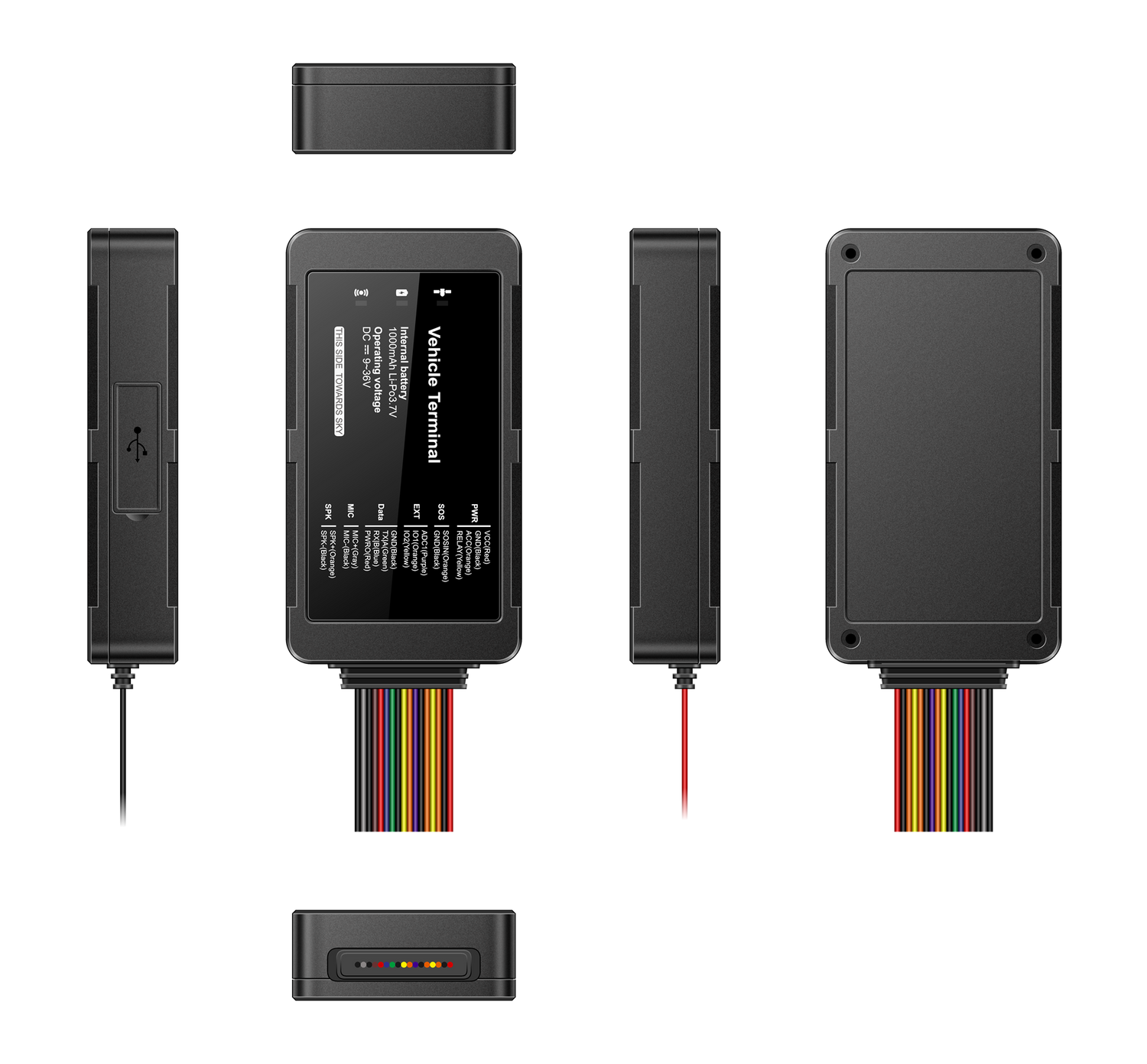

Dimensions |
105 x 56 x 22mm |
Weight |
120g |
Operating environment
Operating temperature |
–20℃ to +70℃ |
IP rating |
IP65 |
Feature
Sensors |
Accelerometer |
Scenarios |
SOS alert, Speeding alert, Abnormal vibration alert, Fatigue driving alert
|
We reserve the right to the final interpretation of this page. All information is for reference only and is subject to change without further notice.
Downloads
Leaflet
