Description

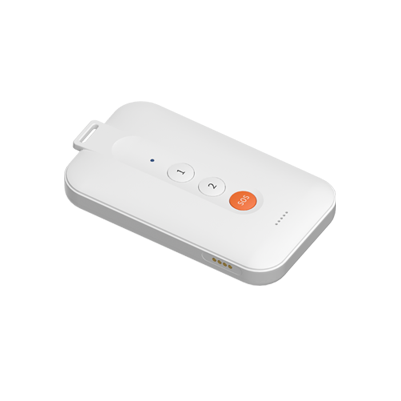

The PL200 is a small and light 4G tracker for mobile workforce management. Its IP65 rated enclosure makes it suitable for carrying around in almost all weather. On a single charge, the device can operate for up to five days by switching between step-count-based and regular GPS modes. Furthermore, the PL200’s text-to-speech (TTS), two-way voice calls, whitelist settings and step counter make it an ideal solution for managing lone workers like sanitation workers, street cleaners and security guards.
Features
Two-Way Communication
Enable workers to make speed-dials to two important contacts with this device.
GPS & BDS & GLONASS Positioning
A synergy of multiple positioning systems ensures the location to be accurately displayed on the cloud platform.
Multiple Working Modes
Configurable working modes according to your actual demands
Remote Listen-in
Inconspicuous mic allows for remote audio monitoring of the environment around the device.
LTE & GSM Network
Stable communication via IoT-specific 4G LTE networks with 2G fallback.
Step Counter
A step can wake up to device to continuously count the steps taken and upload the data to the cloud platform.
Panic Button
Enable workers to ask for immediate help with a single press.
Multiple Alerts
Instant alerts for specific events such as device power-on or shutdown, low battery, SIM card change, etc.
Specifications
Positioning & Location
| Technology |
GPS, BDS, LBS, BLE, WiFi
|
| Accuracy |
＜2.5m CEP
|
| Tracking sensitivity |
–165dBm
|
| Acquisition sensitivity |
–148dBm |
| TTFF (open sky) |
Avg. hot start ≤1sec
Avg. cold start ≤32sec
|
Cellular
| Technology |
4G Cat 1, GSM
|
| Frequency |
PL200(L):
FDD: B1/B2/B3/B4/B5/B7/B28
GSM: B2/B3/B5/B8
PL200(E):
FDD: B1/B3/B7/B8/B20/B28:
TDD: B38/B40/B41
GSM: B2/B3/B5/B8
|
Power
| Battery |
2,000mAh/3.7V industrial-grade Li-Polymer battery (rechargeable)
|
| Working modes |
Mode 0: Step-count-based mode
Mode 1: Timing mode
|
| Battery life |
Up to 5 days
|
Interface
| LED indication |
Power (Red), Notice (Green) |
| SIM |
Nano-SIM |
Memory capacity
|
1000 GPS data entries
|
| Button |
2*functional buttons; 1*panic button
|
| USB |
Magnetic |
| GNSS antenna |
Internal |
| Bluetooth antenna |
Internal |
Feature
| Voice monitoring range |
N/A |
| Sensors |
Accelerometer |
| Scenarios |
Power-on alert, Shutdown alert, Low battery alert, SOS alert, SIM card change alert, Geo-fence entry & exit alert
|
Speaker, Microphone
|
Speaker, Microphone
|
| Bluetooth |
BLE 5.0
|
| RFID |
N/A
|
| Mount method |
Lanyard
|
| Configuration support |
SMS, Online command
|
| Certification |
FCC、CE
|
Operating environment
| Operating temperature |
–20℃ to +60℃
|
| Operating humidity |
5% to 95%, non-condensing
|
| IP rating |
IP65
|
Physical specification
| Dimensions |
105.0 x 62.0 x 13.0mm |
| Weight |
81g |
* We reserve the right to the final interpretation of this page. All information is for reference only and is subject to change without further notice.
